FEATURES
This display chiller is perfect for any retail setting! Its double-layer heated glass prevents frost build-up, and its internally lighted design promotes impulse sales. The shielded LED fluorescent lighting is safe for use around children and pets, and the high-density insulation saves energy. The automatic defrost system shortens the defrost cycle time, and the corrosion-resistant refrigeration system keeps your food items fresh. Plus, this product features an environmentally friendly refrigerant that is CFC and HCFC-free!
- Double layer heated glass, frost-free.
- Internally lighted promotes impulse sales.
- Shielded LED fluorescent internal lighting assures safety.
- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Automatic defrost system saves energy consumption and provide the shortest possible defrost cycle.
- Refrigeration system protected from corrosion by the urethane-treated evaporator coil.
- Environmental friendly refrigerant (CFC and HCFC Free) R134a
SPECIFICATIONS
| Model Silver Aluminium Door Frame |

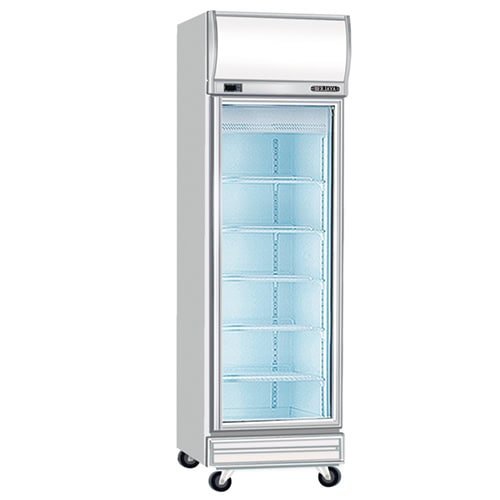

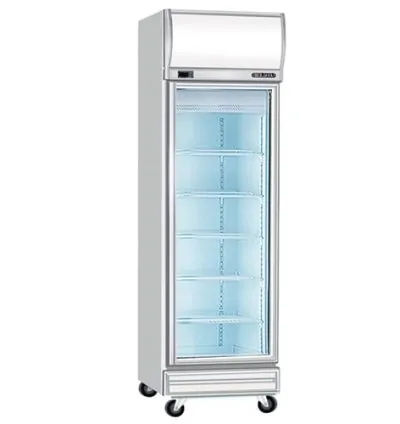

1 Door 1D/DC-SM |
| Temperature°C (celsius) | +1 to +6 |
| External Dimension (mm) | 635 x (710+20) x 2060 |
| Gross Volume (Litres) | 400 |
| Voltage/ Frequency (V/ Hz) | 230V/ 1 / 50Hz |
| 220V/ 1 / 60Hz | |
| Cooling Capacity (W) | 839 |
| Wattage (W) | 365 – 404 |
| Ampere (A) | 2.3 – 2.6 |
| Energy Consumption (kw/ 24h) | 5.6 – 6.2 |
| Refrigerant | R134a / R290 is available* |
| PVC Coated Shelving | 5 |
| Auto Door Lock | Yes |
| Weight (kg) | 95 |
| Unit For 20ft Container | 24 |
| Unit For 40ft Container | 51 |
| Model Silver Aluminium Door Frame |

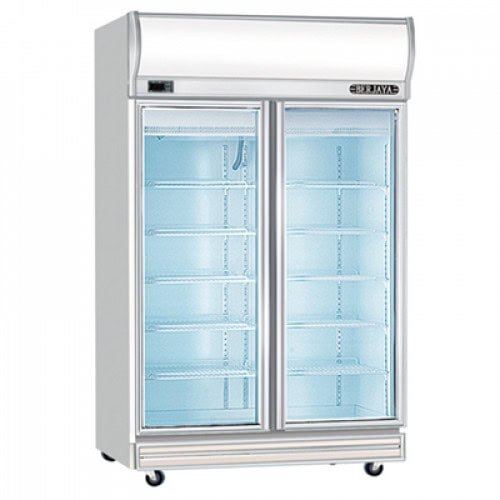

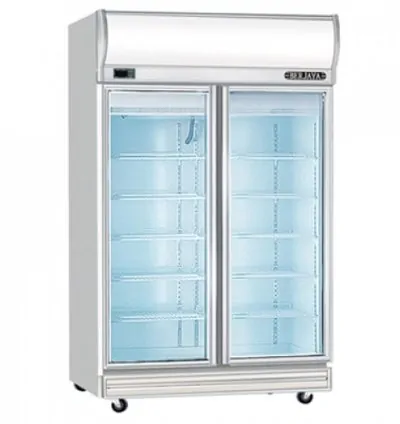

2 Door 2D/DC-SM |
| Temperature°C (celsius) | +1 to +6 |
| External Dimension (mm) | 1260 x (710+20) x 2060 |
| Gross Volume (Litres) | 876 |
| Voltage/ Frequency (V/ Hz) | 230V/ 1 /50Hz |
| 220V/ 1 /60Hz | |
| Cooling Capacity (W) | 1144 |
| Wattage (W) | 599 – 662 |
| Ampere (A) | 3.3 – 3.7 |
| Energy Consumption (kw/ 24h) | 11.4 – 12.6 |
| Refrigerant | R134a / R290 is available* |
| PVC Coated Shelving | 10 |
| Auto Door Lock | Yes |
| Weight (kg) | 157 |
| Unit For 20ft Container | 12 |
| Unit For 40ft Container | 27 |
| Model Silver Aluminium Door Frame |

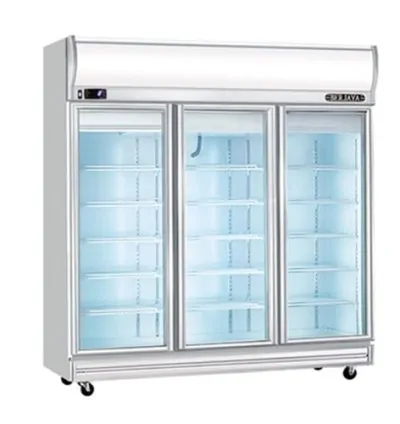

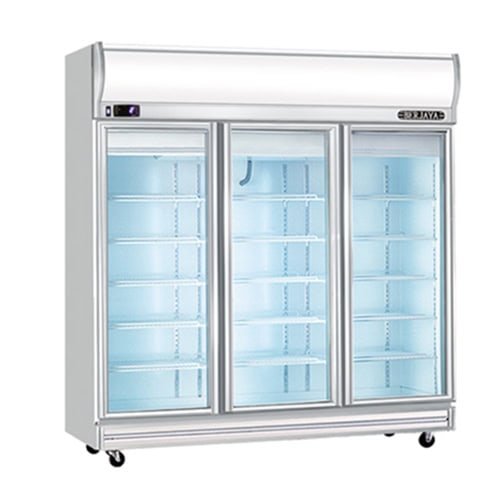

3 Door 3D/DC-SM |
| Temperature°C (celsius) | +1 to +6 |
| External Dimension (mm) | 1880 x (710+20) x 2060 |
| Gross Volume (Litres) | 1351 |
| Voltage/ Frequency (V/ Hz) | 230V/ 1 / 50Hz |
| 220V/ 1 / 60Hz | |
| Cooling Capacity (W) | 1694 |
| Wattage (W) | 895 – 989 |
| Ampere (A) | 4.8 – 5.3 |
| Energy Consumption (kw/ 24h) | 20.7 – 22.9 |
| Refrigerant | R134a / R290 is available* |
| PVC Coated Shelving | 15 |
| Auto Door Lock | Yes |
| Weight (kg) | 209 |
| Unit For 20ft Container | 9 |
| Unit For 40ft Container | 18 |
* R290 Refrigerant, please contact our sales representative for further details.
⇓ PRODUCT BROCHURE
| Product Location | REDSTAR RESORTWARE, Kaafu Atoll, Maldives |
